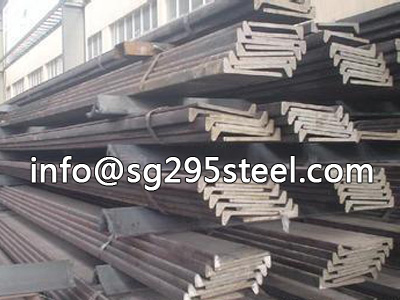

NV A36 angle steel with good toughness properties, higher strength.NV A36 angle steel are mainly used to contribute hull of ships and the cranes of break bulk and vessels in low temperature oceans. All of our stock is the high quality NV A36 angle steel shipbuilding steel bars.
NV A36 angle steel specifications: 100× 75 × 7/10, 100×75×8/10, 125 × 75 × 7/10, 125×75×8/10, 150 × 90 × 9/12, 150×90×10/12, 150×100×12
NV A36 angle steel chemical composition:
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
Nb |
V |
|
AH36 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
0.02-0.05 |
0.05-0.10 |
Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
NV AH36 angle Mechanical Property in shipbuilding angle steel bar, bulb flat bar, L section steel bar
Grade |
Rm |
Re(MPa) min |
A% min |
Akv/J min |
||||||
|
E.T °C |
Thickness (mm) |
|||||||||
|
≤ 50 |
>50-70 |
>70-100 |
||||||||
|
L |
C |
L |
C |
L |
C |
|||||
|
NVA36 |
490-630 |
355 |
21 |
0 |
34 |
24 |
41 |
27 |
50 |
34 |
NV AH36, NVA36 shipbuilding angle steel bar, bulb flat bar, L section steel bar delivery condition :
Grade |
Fine grains elements |
category |
The thickness of steel |
|||||
|
≤ 12 |
>12.5-20 |
>20-25 |
>25-35 |
>35-50 |
>50-100 |
|||
|
AH36 |
Nb+V or V |
Plate/sheet |
A(50) |
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||
|
Profile steel |
|
N(50),CR(50),TM(50),AR*(25) |
- |
|||||
|
Al or Al+Ti |
Plate/sheet |
A(50) |
AR*(25) |
- |
||||
|
Profile steel |
|
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||||
|
A(50) |
N(50),CR(50),TM(50),AR*(25) |
- |
||||||
Shanghai Royal Industry keeps more than 10,000 tons hot rolled and cold rolled NV A36 angle steel bars, NV A36 shipbuilding steel in stock each month. We can meet our customer's any quantity request. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure. Anyway if you have any need of NV A36 angle steel bars,please contact us with following information:
Email: info@sg295steel.com
Tel: 021-60880117
