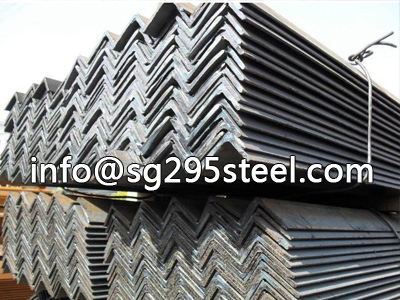

DNV AH32 angle steel is a kind of high tensile strength marine steel. All of these steels have been engineered to be optimal long-lived shipbuilding steels.DNV AH32 angle steel bar are mainly used for making the offshore oil drilling platform, the hull of ship building and ship repairing, the platform pipe joints and other components. All the DNV AH32 angle Steel offered by Shanghai Royal Industry can be certificated by Shanghai Royal Industry as per customer's request.
The size are :100× 75 × 7/10, 100×75×8/10, 125 × 75 × 7/10, 125×75×8/10, 150 × 90 × 9/12, 150×90×10/12, 150×100×12
NV A32 angle steel plate chemical composition:
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
|
NV A32 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
NV A32 angle steel bar mechanical property:
Grade |
Rm |
Re(MPa) min |
A% min |
Akv/J min |
||||||
|
E.T °C |
Thickness (mm) |
|||||||||
|
≤ 50 |
>50-70 |
>70-100 |
||||||||
|
L |
C |
L |
C |
L |
C |
|||||
|
NV A32 |
440-570 |
315 |
22 |
0 |
31 |
22 |
38 |
26 |
46 |
31 |
NV A32 angle steel bar delivery condition:
Grade |
Fine grains elements |
category |
The thickness of steel |
|||||
|
|
|
|
≤ 12 |
>12.5-20 |
>20-25 |
>25-35 |
>35-50 |
>50-100 |
|
NV A32 |
Nb+V or V |
Plate/sheet |
A(50) |
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||
|
Profile steel |
|
N(50),CR(50),TM(50),AR*(25) |
- |
|||||
|
Al or Al+Ti |
Plate/sheet |
A(50) |
AR*(25) |
- |
||||
|
|
|
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||||
|
Profile steel |
A(50) |
N(50),CR(50),TM(50),AR*(25) |
- |
|||||
Shanghai Royal Industry keeps more than 10,000 tons hot rolled and cold rolled DNV angle AH32, NV A32 angle shipbuilding steel in stock each month. We can meet our customer's any quantity request. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find DNV AH32 angle steel, NV A32 angle steel bar/sheet/angle bar/bulb flat bar/ L section steel bar supplier, DNV AH32, NV A32 angle steel plate/sheet/angle bar/bulb flat bar/ L section steel bar manufacturer, DNV AH32, NV A32 angle steel bar/sheet/angle bar/bulb flat bar/ L section steel bar exporter, please contact Shanghai Royal Industry's sales team. We will give you the DNV AH32, NV A32 angle steel bar/sheet/angle bar/bulb flat bar/ L section steel bar competitive price, DNV AH32, NV A32 angle steel /sheet/angle bar/bulb flat bar/ L section steel bar good quality and best service from us with following information:
