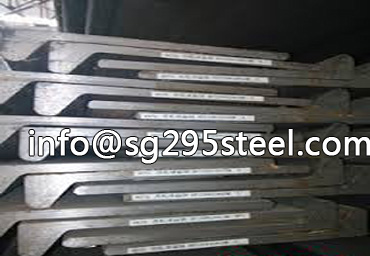

KR Grade A36 marine bulb flat steel bar with good toughness properties,higher strength.KR Grade A36 bulb flat steel bar are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.All of our stock is the high quality KR Grade A36 bulb flat steel bar shipbuilding steel.we has a large number of stocks.
KR Grade A36 bulb flat steel bar specifications:80 × 5/6,100 × 7/8,120 × 6/7/8,140 × 7/8/10,160 × 7/8/9/11,180 × 8/9/10/11,200 × 9/10/1112,220 × 10/11/12,240 × 10/11/12,260 × 10/11/12,280 × 11/12/13,300 × 11/12/13,320 × 12/13/14,340 × 12/13/14,370 × 13/14/15,400 × 14/15/16,430 × 14/15/17/19/20.
KR A36, R A36 chemical composition in shipbuilding angle steel bar, bulb flat bar, L section steel bar
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
Nb |
V |
AH36 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
0.02-0.05 |
0.05-0.10 |
KR A36, R A36 Mechanical Property in shipbuilding angle steel bar, bulb flat bar, L section steel bar
Grade |
Rm |
Re(MPa) min |
A% min |
Akv/J min |
||||||
E.T °C |
Thickness (mm) |
|||||||||
≤ 50 |
>50-70 |
>70-100 |
||||||||
L |
C |
L |
C |
L |
C |
|||||
R A36 |
490-630 |
355 |
21 |
0 |
34 |
24 |
41 |
27 |
50 |
34 |
Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
Grade |
Fine grains elements |
category |
The thickness of steel |
|||||
≤ 12 |
>12.5-20 |
>20-25 |
>25-35 |
>35-50 |
>50-100 |
|||
AH36 |
Nb+V or V |
Plate/sheet |
A(50) |
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||
Profile steel |
|
N(50),CR(50),TM(50),AR*(25) |
- |
|||||
Al or Al+Ti |
Plate/sheet |
A(50) |
AR*(25) |
- |
||||
Profile steel |
|
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||||
A(50) |
N(50),CR(50),TM(50),AR*(25) |
- |
Shanghai Royal Industry as the qualified KR Grade A36 bulb flat steel bar supplier,always want to give you better products of KR Grade A36 bulb flat steel bar.and you can tell us what kind of KR Grade A36 bulb flat steel bar you need,we are capable to give you the right KR Grade A36 bulb flat steel bar you need.
Shanghai Royal Industry can guarantee the quality of KR Grade A36 bulb flat steel bar,also you can get a fair KR Grade A36 bulb flat steel bar price from the qualified KR Grade A36 bulb flat steel bar supplier,so if you need,don't hesitate to contact us:
