36CrNiMo4 structural alloy steel

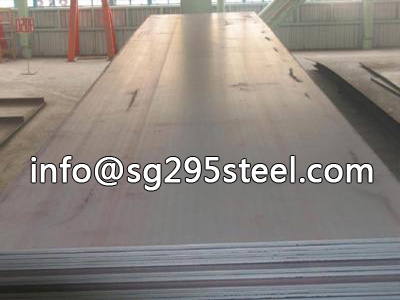

36CrNiMo4 steel plate

DIN 36CrNiMo4 alloy steel is widely used in permanently stressed components with large cross sections for automotive and mechanical engineering.the 36CrNiMo4 structural alloy steel is also good for economic performance under severe dynamic stress and parts must be designed for optimum strength or toughness.

Delivery Condition:Hot rolled,black surface/brigth surface with customers’ required heat treatment.

36CrNiMo4 alloy steel sheet/plate chemical composition %

C

Si
max

Mn

P max

S max

Nmax

B

0.32-0.40

0.40

0.50-0.80

0.025

0.035

0.009

0.0008-0.0050

36CrNiMo4 alloy steel plate/sheet Mechanical properties at room temperature in the quenched and tempered condition

Grade

Mechanical properties for the ruling section
with a diameter (d) or for flat products thickness (t) of



36CrNiMo4



d ≤ 16 mm t ≤ 8 mm

16 mm < d ≤ 40 mm 8 mm < t ≤ 20 mm

Remin(Mpa)

Rm(Mpa)

A min(%)

Zmin(%)

KVbmin(J)

Remin(Mpa)

Rm(Mpa)

Amin(%)

Zmin(%)

KVbmin(J)

900

1100-1300

10

45

35

800

1000-1200

11

50

40

Production specification:
Round bar steel: 1mm to 3500mm
Square-shape steel: 1mm to 4000mm
Plate steel:0.1mm to 4000mm
Width: 10mm to 2500mm
Lenth: We can supply any lenth based on the customer's requirement.
Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes
Tubings: OD: φ6-1800mm, with wall thickness ranging from 1-35 mm.

More information about the 36CrNiMo4 structural alloy steel you can get here.

Related Product:

30CrNiMo8,34CrNiMo6,36CrNiMo16
